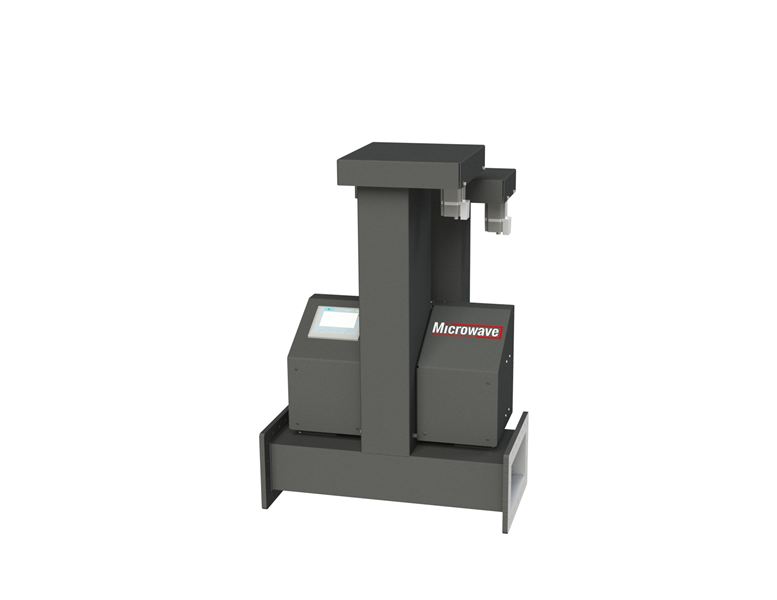

WR975 (R9) Waveguide E-H Auto-Tuner, 915 MHz, 100 KW CW for high-power RF and microwave applications
Unit of Measure
Type |
N/A Tuners |
Product # |
N/A AT-EH-975-701 |
Waveguide Size |
N/A WR975 (R9) |
Configuration |
N/A Tuner- Auto |
Frequency |
N/A 915 MHz |
Bandwidth |
N/A 30 MHz |
Wall |
N/A 0.125 in |
| Power1 | N/A 100 KW CW |
Finish |
N/A RoHS Compliant Per MIL-DTL-5541 |
Material |
N/A Aluminum |
Tuning Capability |
N/A 10:1 |
Operation |
N/A Motorized |
Pressure |
N/A N/A - Not Hermetic |
Interface |
N/A EIA-271 CPRF |
Weight |
N/A 104.0 lb |
Paint |
N/A Microwave Techniques Black |
Marking |
N/A Standard Label Containing PN, SN, QR Code |
Length A |
N/A 25.8 in |
- 1
- 30,000 V/cm Breakdown Voltage
- Unpressurized Waveguide
- 1:00:1 VSWR
- Average power is based upon unpressurized painted aluminum waveguide, internal surface finish of 63µm, under free convective cooling with an operating temperature that is 25oC above ambient temperature. Cooling options should be considered if the waveguide will be operating at higher average power levels - please consult factory.
