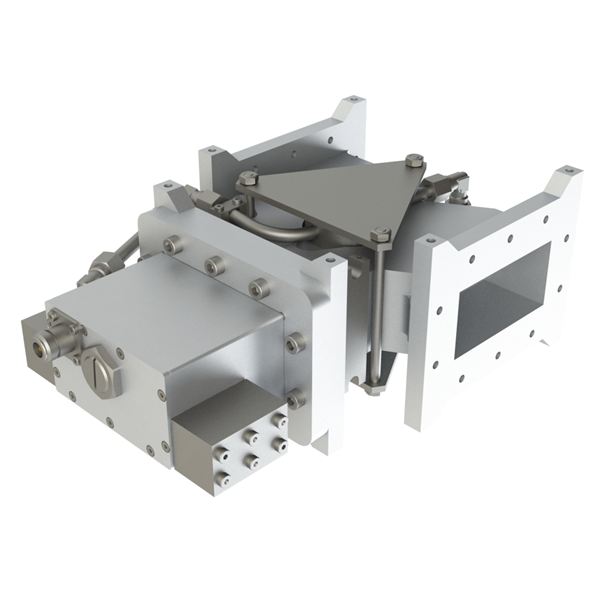

Waveguide Isolators
By Waveguide Component Type
Microwave Techniques manufactures high-power waveguide isolators, engineered for optimal protection, high performance, and the utmost precision in microwave and RF applications. Our industry-leading line of isolator solutions provide users with unique capabilities in power source protection
Devices are available in various configurations from WR90 to WR2300+.
Our isolators offer maximum isolation with the minimization of insertion loss.
In addition to our standard product offering, we also offer new isolator design and development programs for all custom solutions and applications.
Please note all product data, specifications, and descriptions are subject to change at the sole discretion of Microwave Techniques and must be confirmed at the time of order.
Waveguide Isolators
Microwave Techniques manufactures high-power waveguide isolators, engineered for optimal protection, high performance, and the utmost precision in microwave and RF applications. Our industry-leading line of isolator solutions provide users with unique capabilities in power source protection
Devices are available in various configurations from WR90 to WR2300+.
Our isolators offer maximum isolation with the minimization of insertion loss.
In addition to our standard product offering, we also offer new isolator design and development programs for all custom solutions and applications.
-
Our design capabilities for waveguide isolators continues to expand. Current capabilities include:
- WR90 to WR2300+
- Thousands of models to choose from
- Designs for high peak and average power
- Extensive solutions for 2450 MHz applications
- Wide range of UHF, L, S, C, and X band devices
- A range of custom options with design and development
Please note all product data, specifications, and descriptions are subject to change at the sole discretion of Microwave Techniques and must be confirmed at the time of order.
Product # |
Type |
Waveguide Size |
Frequency |
Weight |
CAD |
|---|---|---|---|---|---|
| VHV1238 | Type N/A Isolators | Waveguide Size N/A WR159 (R58) | Frequency N/A 5800 MHz | Weight N/A 3.4 lb |
CAD
N/A
|
| VHU1131 | Type N/A Isolators | Waveguide Size N/A WR284 (R32) | Frequency N/A 2455 MHz | Weight N/A 7.1 lb |
CAD
N/A
|
| VHU1250 | Type N/A Isolators | Waveguide Size N/A WR340 (R26) | Frequency N/A 2450 MHz | Weight N/A 12.1 lb |
CAD
N/A
|
| VHU1293 | Type N/A Isolators | Waveguide Size N/A WR340 (R26) | Frequency N/A 2450 MHz | Weight N/A 12.1 lb |
CAD
N/A
|
| VHU1574 | Type N/A Isolators | Waveguide Size N/A WR340 (R26) | Frequency N/A 2450 MHz | Weight N/A 12.1 lb |
CAD
N/A
|
| VHU1596 | Type N/A Isolators | Waveguide Size N/A WR340 (R26) | Frequency N/A 2450 MHz | Weight N/A 12.1 lb |
CAD
N/A
|
| VHU1610 | Type N/A Isolators | Waveguide Size N/A WR340 (R26) | Frequency N/A 2450 MHz | Weight N/A 12.1 lb |
CAD
N/A
|
| VHU1667 | Type N/A Isolators | Waveguide Size N/A WR340 (R26) | Frequency N/A 2450 MHz | Weight N/A 12.1 lb |
CAD
N/A
|
| VHU1684 | Type N/A Isolators | Waveguide Size N/A WR340 (R26) | Frequency N/A 2450 MHz | Weight N/A 2.7 lb |
CAD
N/A
|
| VHU200C | Type N/A Isolators | Waveguide Size N/A WR340 (R26) | Frequency N/A 2450 MHz | Weight N/A 12.1 lb |
CAD
N/A
|
| VHU200D | Type N/A Isolators | Waveguide Size N/A WR340 (R26) | Frequency N/A 2450 MHz | Weight N/A 12.1 lb |
CAD
N/A
|
| VHU200E | Type N/A Isolators | Waveguide Size N/A WR340 (R26) | Frequency N/A 2450 MHz | Weight N/A 12.1 lb |
CAD
N/A
|
| VHU200F | Type N/A Isolators | Waveguide Size N/A WR340 (R26) | Frequency N/A 2450 MHz | Weight N/A 12.1 lb |
CAD
N/A
|
| VHU207 | Type N/A Isolators | Waveguide Size N/A WR340 (R26) | Frequency N/A 2450 MHz | Weight N/A 11 lb |
CAD
N/A
|
| VHU1504 | Type N/A Isolators | Waveguide Size N/A WR430 (R22) | Frequency N/A 2450 MHz | Weight N/A 11.5 lb |
CAD
N/A
|
